R210 Reliable Online Particle Counter For Real Time Data Logging And Analysis

Brand Name : Zetron

Model Number : R210

Certification : CE, ISO13485, ISO9001

Place of Origin : German

MOQ : 1

Payment Terms : T/T, L/C, Western Union, MoneyGram

Supply Ability : 10000 set/month

Delivery Time : 3-7 days

Packaging Details : Plastic box

Flow Rate : 2.83L/Min

Dimension : 135x120x60(mm)

Display : Customizable,2.4 Inch OLED

Weight : 0.9kg

Contact Now

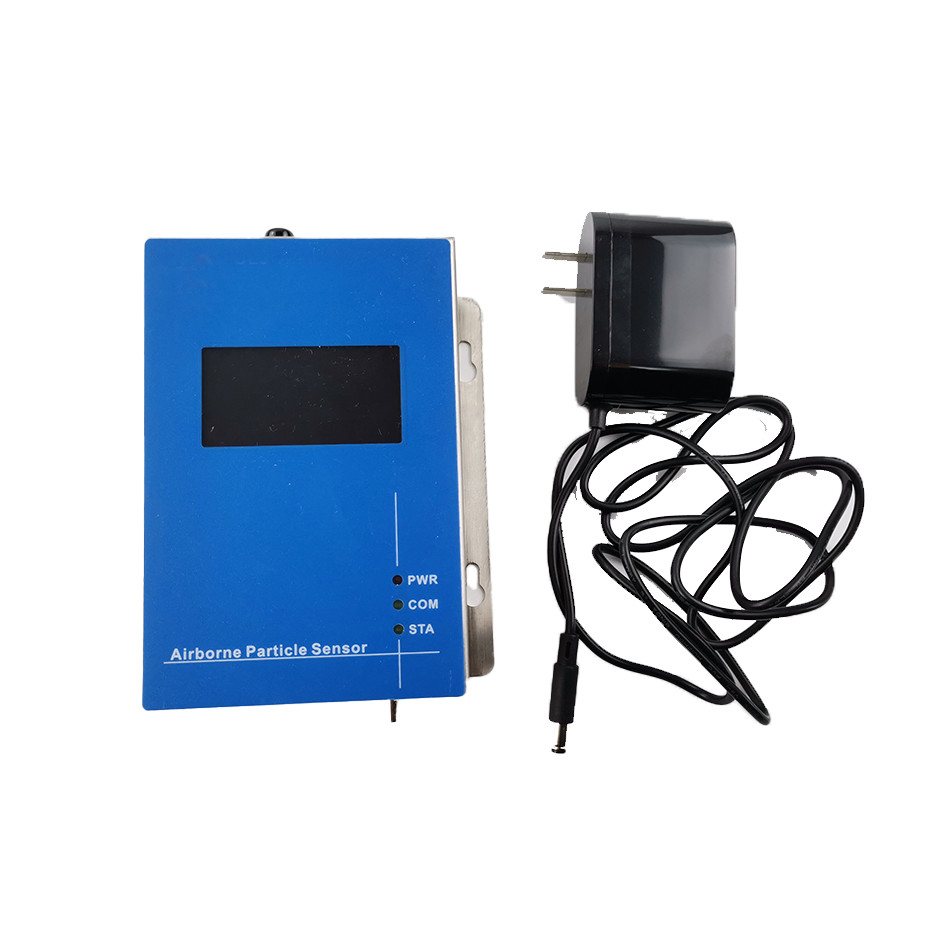

R210 Reliable Online Particle Counter for Real-Time Data Logging and Analysis
OVERVIEW
R210 Remote particle counter is used to install one or more monitoring points according to the actual situation on site, and the measured datas will be directly displayed on the display screen of each monitoring point.

R210 Remote Particle Counter meets the requirements of GMP, and ISO21501-4. If an abnormality occurs during real-time monitoring, the monitoring points can be quickly notified, which makes remote monitoring or monitoring in the process restricted area more convenient.

FEATURE

1. Reasonable structure design, compact size, easy installation
2. Particle size channel: 0.3um-25um optional Note: CLJ-R200 optional 0.2μm
3. sampling flow rate: 1CFM (28.3LPM) or 0.1CFM (2.83LPM) optional
4. Three kinds of status indicator guide: power indicator; communication indicator; measurement status indicator
5. RS485 (modbus), 4-20mA, WIFI, LORA, TCPIP and other signal output methods can be selected
6. Using foreign original laser diode and vacuum pump, long service life
7. 2.4 inch OLED display, intuitive and clear reading
8. 316 stainless steel housing can be customized
9. Customizable explosion-proof sensor

TECHNOLOGY PARAMETER

​

Model R200 (2.83L/min) R210(2.83L/min) R310P
R300 (28.3L/min) R310 (28.3L/min) (28.3L/min)
Channel sizes Two Channels:0.5μm,5.0μm
Three Channels:0.3μm,0.5μm,5.0μm
Four Channels:0.3μm,0.5μm,1.0μm,5.0μm
Six Channels:0.3μm,0.5μm,1.0μm,2.0μm,3.0μm,5.0μm(Customizable)
Display X Customizable Display
2.4 inch OLED 2.4 inch OLED
Output RS485(modbus) RS485(modbus)or TCPIP(modbus)
(TCPIP has no extended output)
RS485(modbus) X 4-20mA(2channels);0-5V(2channels)
Extended Output Relay(2channels);WiFi;LORA
Power Supply 12-24V 12-24V(RS485(modbus))
12-24V,48V Standard POE(TCPIP(modbus))
Pump External pump Built-in pump(R210) Built-in pump
External pump(R310)
Weight &Size 0.2-0.3Kg 0.9Kg 2.6-2.8Kg
106.5*76*49(mm) 135*120*60(mm) 217*250*138(mm)
